5ft High Green PVC Coated Iron Wire Mesh Steel Chain Link Fencing
Steel chain link fencing product description
1. Materials: mainly galvanized iron wire, stainless steel wire, PVC wire, and aluminium alloy wire.
2. Surface Treatment: PVC coated, electro or hot-dipped galvanized.
3. Weaving: Woven diamond pattern provides strong, durable and flexible construction.
4. Wire diameter:2.0mm-5.0mm
5. Mesh size: 25x25mm, 50x50mm, 60x60mm, 75x75mm, 100x100mm, etc
6. Roll length: 10m,15m,20m,25m,30m,50m height: 0.5m-5.0m
7. Packing: both ends packing with woven bag or plastic film or as customer's requirements
Steel chain link fencing selvedge
Steel chain link fencing specifications
| Heavy Galv Wire – 50mm Pitch |
| Nominal Height | Standard roll length | Light Duty (2.5mm) | Heavy Duty (3.15mm) |
| 900mm | 10m | Yes | Yes |
| 1200mm | 10m | Yes | Yes |
| 1500mm | 10m | Yes | Yes |
| 1800mm* | 10m | Yes | Yes |
| 2100mm* | 10m | Yes | Yes |
| 2400mm* | 10m | Yes | Yes |
| 3000mm | 10m | Yes | Yes |
| 3600mm | 10m | Yes | Yes |
| PVC Coated Wire – 50mm Pitch |
| Nominal Height | Standard roll length | Light Duty (2.5mm) | Heavy Duty (3.15mm) |
| 900mm | 10m | Yes | Made to Order |
| 1200mm | 10m | Yes | Made to Order |
| 1500mm | 10m | Yes | Made to Order |
| 1800mm* | 10m | Yes | Made to Order |
| 2100mm* | 10m | Yes | Made to Order |
| 2400mm* | 10m | Yes | Made to Order |
| 3000mm | 10m | Yes | Made to Order |
| 3600mm | 10m | Yes | Made to Order |
NB: All stock items available with (KK) Selvedge as a standard stock item. * Include option for (KB) as a standard stock item. BB is available but not as a standard stock item.
| Heavy Galv Wire – 45mm Pitch |
| Nominal Height | Standard roll length | Light Duty (2.5mm) | Heavy Duty (3.15mm) |
| 3000mm | 10m | Yes | Made to Order |
| 3600mm | 10m | Yes | Made to Order |
| PVC Coated Wire – 45mm Pitch |
| Nominal Height | Standard roll length | Light Duty (2.5mm) | Heavy Duty (3.15mm) |
| 3000mm | 10m | Yes | Made to Order |
| 3600mm | 10m | Yes | Made to Order |
NB: All stock items available with (KK) Selvedge as a standard stock item. * Include option for (KB) as a standard stock item. BB is available but not as a standard stock item.
Steel chain link fencing drawing:

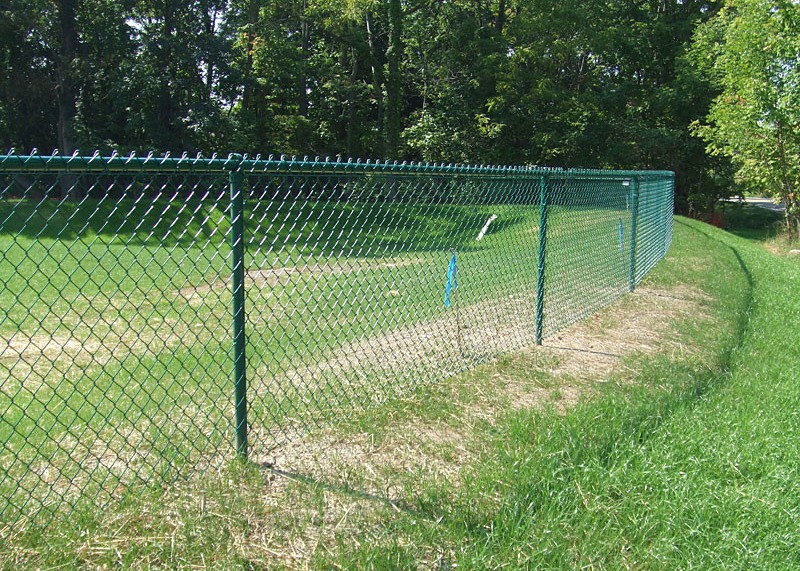

Steel chain link fencing application:
Chain link fence with PVC coated is lightweight and perfectly resists aggressive environmental influences, and it has an attractive appearance. So it is the best choice for gardens, tennis courts, sports fields fencing. And it is also suitable for using in the oil field, sea around and coast of the salt sea. Green or black chain link fencing is also suitable for creating indoor dog pens
Steel chain link fencing packing and workshop:
Steel chain link fencing gate:
